拍擊式振動篩
XY-S200系列拍擊篩產品概述
Product overview

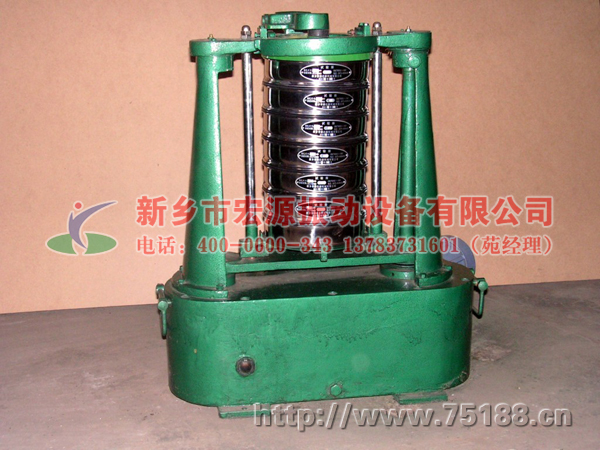

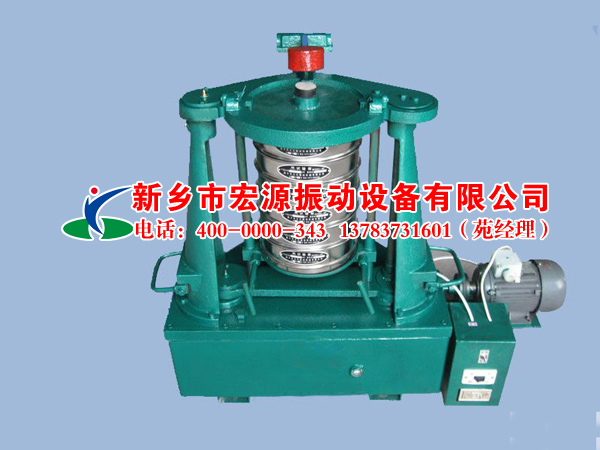

XY-S200系列拍擊式振動篩(拍擊篩)主要由機座、篩與傳動機構等部分組成。本拍擊篩可配備專用夾具、即可裝夾Φ200試驗篩，又可裝Φ75、Φ100套篩，裝夾方便靈活，夾緊牢靠，并能自動停機。
XY - S200 series panting vibrating screen (panting) is mainly composed of base, screening and transmission mechanism parts.The panting screen can be equipped with special fixture, 200 test screen, then the clamping Φ can install Φ again 75, Φ 100 sets of screen, the clamping convenient and flexible, clamping, and can automatically stop.
XY-S200系列拍擊篩主要用途
XY系列拍擊式標準振篩機(拍擊篩)可篩分多種特性物料的產品。適用于普通磨料粒度組成檢查和超硬材料生產分級及粒度組成檢查，亦廣泛用于地質、冶金、粉體、化工、建工水泥、醫藥、國防等部門科研生產實驗室，對物料進行篩分檢測。 該拍擊篩是在原拍擊式標準振篩機的基礎上進行了合理的革新，改善了原機座的構造。結構更加緊湊，機身重量減輕，產品更加耐用、輕捷、方便，維護更加簡單，配件易修易購，可廣泛應用于地質、粉末冶金、磨料、粉體、化工、建材、醫藥、國防等部門實驗室篩分檢測，尤其適用于金剛石微粉、超硬材料行業生產分級工序高強度、大頻率地反復使用．
XY系列拍擊式標準振篩機(拍擊篩)主要由機座、篩與傳動機構等部分組成。本拍擊篩可配備專用夾具、即可裝夾Φ200試驗篩，又可裝Φ75、Φ100套篩，裝夾方便靈活，夾緊牢靠，并能自動停機。
Applications
XY series panting standard screen machine (panting screeb) can screening various characteristics of the material products.Suitable for ordinary abrasive particle composition inspection and production of superhard materials and grain size of check, also widely used in geology, metallurgy, powder, chemical industry, construction of cement, departments and so on medicine, national defense scientific research and production of laboratory, screening test was carried out on the material.The panting vibration sieve is in the original panting standard sieve machine on the basis of the reasonable innovation, improved the structure of the original frame.Structure is more compact, body weight, the product is more durable, balloon, convenient, more simple maintenance, spare parts easy to tesco, can be widely used in geology, powder metallurgy, abrasive, powder, chemical industry, building materials, medicine, laboratory screening tests, such as defence department is especially suitable for the diamond powder and grade of superhard materials industry production process of high strength, large frequency used again and again.
XY-S200系列拍擊篩主要技術參數
Parameters|
序號
|
名稱
|
單位
|
數值
|
|
|
1
|
篩子直徑
|
毫米
|
φ200、φ100、φ75
|
|
|
2
|
篩子層次
|
層
|
7
|
|
|
3
|
200實驗篩
|
套
|
1
|
|
|
4
|
旋轉次數
|
次/分
|
290±6
|
|
|
5
|
排擊次數
|
次/分
|
156±3
|
|
|
6
|
排擊高度
|
毫米
|
38±6
|
|
|
7
|
底盤水平度
|
mm/min
|
≤0.6
|
|
|
8
|
旋轉行程
|
毫米
|
25
|
|
|
9
|
電動機
|
功率
|
千瓦
|
0.37
|
|
轉速
|
轉/分
|
1400
|
||
|
10
|
外形尺寸
|
毫米
|
長×寬×高 850×650×900
|
|
|
11
|
篩機重量
|
公斤
|
85
|
|
XY-S200系列拍擊篩主要用途
XY系列拍擊式標準振篩機(拍擊篩)可篩分多種特性物料的產品。適用于普通磨料粒度組成檢查和超硬材料生產分級及粒度組成檢查，亦廣泛用于地質、冶金、粉體、化工、建工水泥、醫藥、國防等部門科研生產實驗室，對物料進行篩分檢測。 該拍擊篩是在原拍擊式標準振篩機的基礎上進行了合理的革新，改善了原機座的構造。結構更加緊湊，機身重量減輕，產品更加耐用、輕捷、方便，維護更加簡單，配件易修易購，可廣泛應用于地質、粉末冶金、磨料、粉體、化工、建材、醫藥、國防等部門實驗室篩分檢測，尤其適用于金剛石微粉、超硬材料行業生產分級工序高強度、大頻率地反復使用．
Applications
XY series panting standard screen machine (panting screen) can screening various characteristics of the material products.Suitable for ordinary abrasive particle composition inspection and production of superhard materials and grain size of check, also widely used in geology, metallurgy, powder, chemical industry, construction of cement, departments and so on medicine, national defense scientific research and production of laboratory, screening test was carried out on the material.The panting vibration sieve is in the original panting standard screen machine on the basis of the reasonable innovation, improved the structure of the original frame.Structure is more compact, body weight, the product is more durable, balloon, convenient, more simple maintenance, spare parts easy to tesco, can be widely used in geology, powder metallurgy, abrasive, powder, chemical industry, building materials, medicine, laboratory screening tests, such as defence department is especially suitable for the diamond powder and grade of superhard materials industry production process of high strength, large frequency used again and again.
